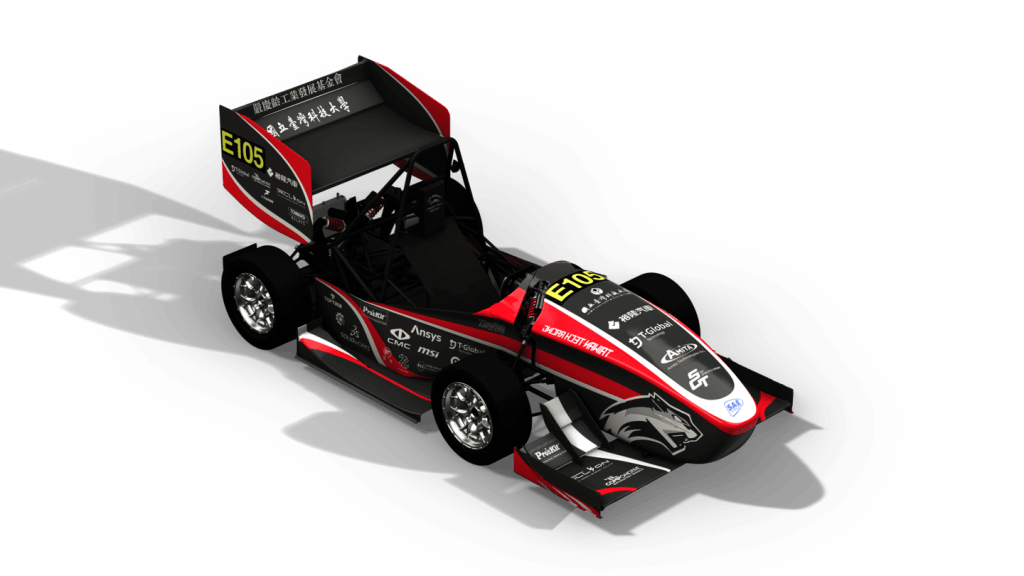

Leopard 01 Features

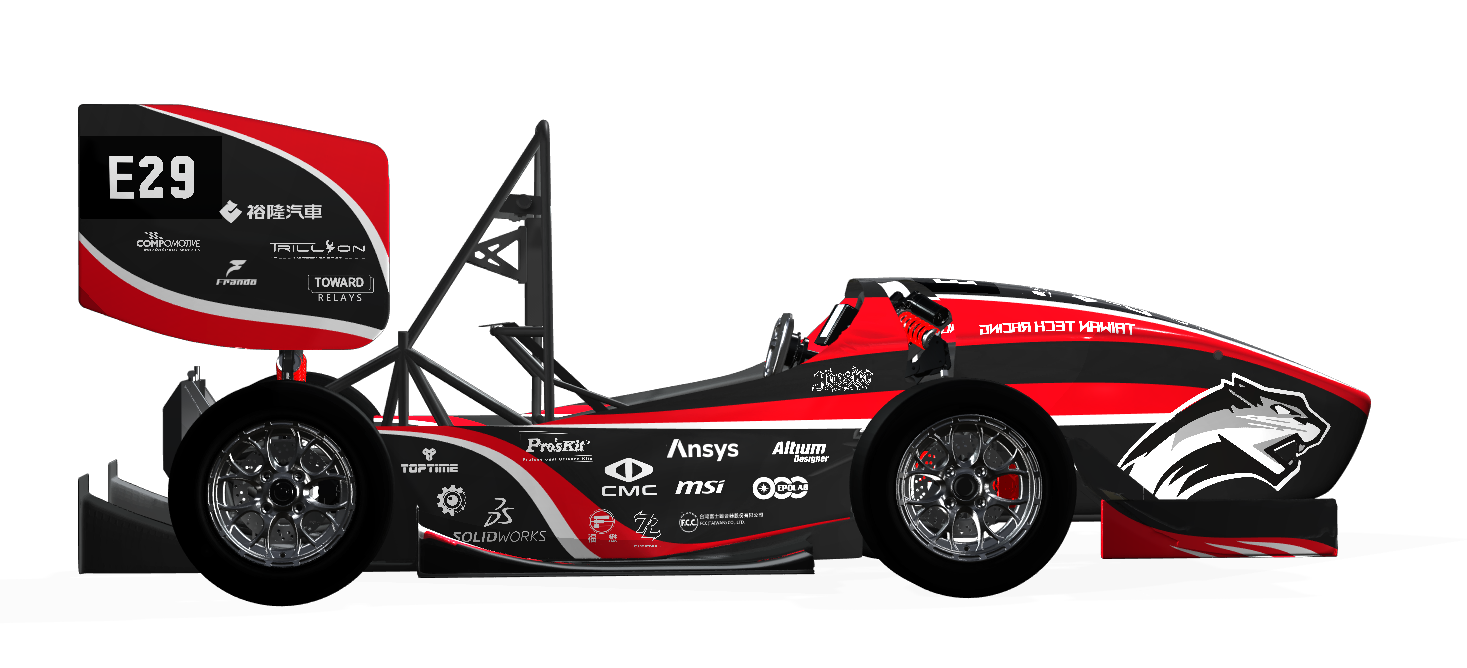

Leopard 01 Side View

  • TSAL

    TSAL Feature

  • Steel Tube

    Steel Tube Feature

  • Aero

    Carbon Fiber Feature

  • Tire

    Tires Feature

Leopard 01 Technical Specs

Weight309 kg
Counterweight Ratio48:52 (without driver) 50:50 (with driver)
Wheelbase1650 mm
0 – 100 Acceleration4.0 sec

Powertrain

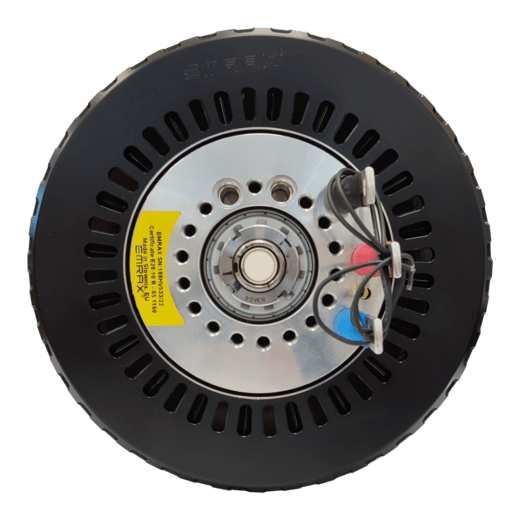

MotorEMRAX 228
Peak Power – 124 kW
Peak Torque – 230 Nm
Accumulator600V Water-cooling Accumulator
Li-Po Punch Cells
Capacity – 7.7 kWh
Power – 60 kW
Peak Power – 130 kw
(Self-made accumulator & Self-made battery manage system)

Bodyworks

FrameSteel Tube
Weight – 45 kg
Torsional Stiffness – 1739 N-m/deg
Aerodynamics KitNACA 2412 High Performance Aerofoil
Material – Carbon Fiber
Weight – 30 kg
Down Force – 400 N
Drag Force – 142.8 N
Down/Drag Ratio – 2.8

Chassis

SuspensionFront and Rear Push Rod Suspension
BrakeFrando Two-piston Caliper
Four-wheel Disc Brake
TireUnilli FSAE
